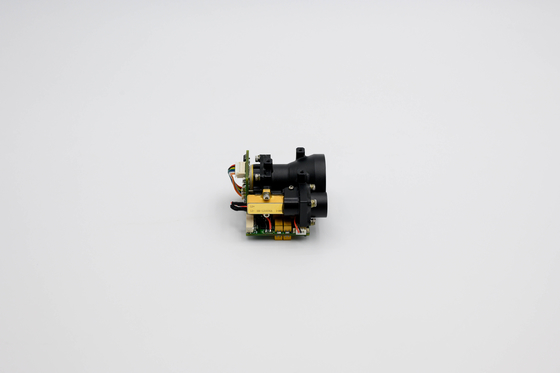

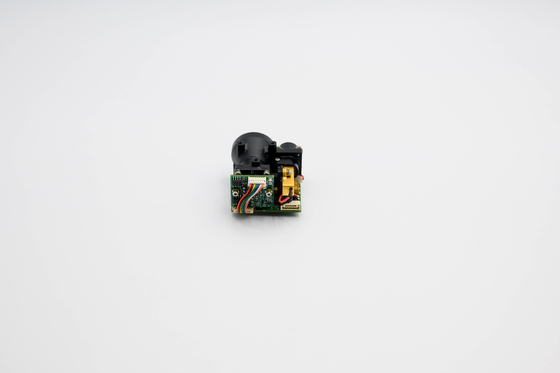

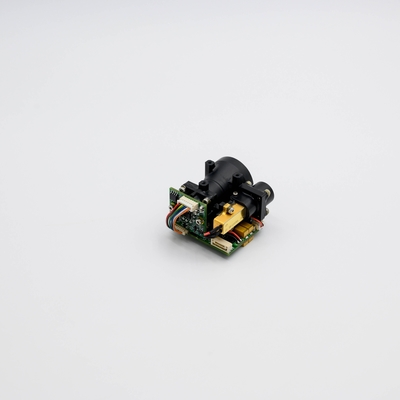

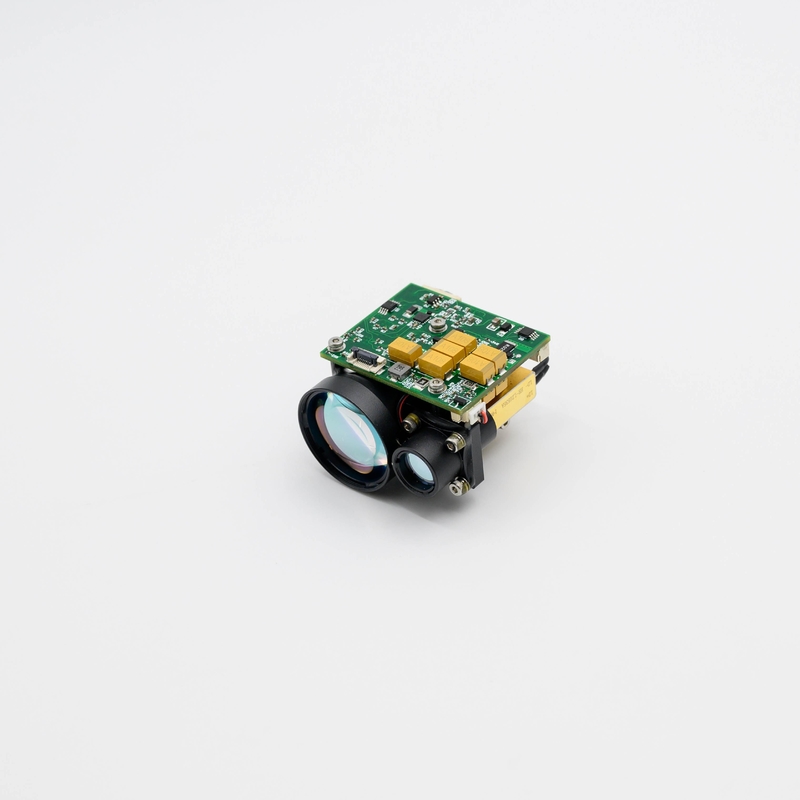

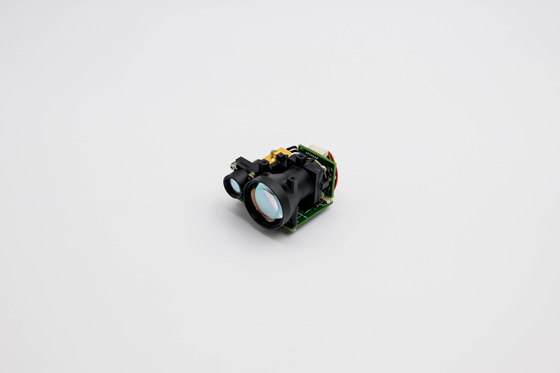

Compact LRF-258 Laser Rangefinder for Fire Control Equipment Laser Distance Meter

Large Image : Compact LRF-258 Laser Rangefinder for Fire Control Equipment Laser Distance Meter

Product Details:

Place of Origin:	Zhejiang, China

Contact Now

Detailed Product Description

Application:	Measure Distance And Then Calculate Area Volume Pythagoras	Meter Type:	Laser Distance Meters
Laser Wavelength:	1535±5nm	Minimum Measuring Range:	≤30m
Ranging Accuracy:	≤±1m	Accuracy Rate:	≥98%
Weight:	≤75g	Size:	≤513545mm
Supply Voltage:	DC9~15V	Operating Temperature:	-40℃~+60℃
Storage Temperature:	50℃~+70℃

Laser wavelength	1535±5nm
Maximum measuring range	Under the conditions of visibility not less than 10km, relative humidity not more than 80%, moderate atmospheric turbulence, target reflection coefficient 0.2, the maximum range for a target of 2.3m×2.3m is ≥8km
Minimum measuring range	≤30m
Ranging accuracy	≤±1m
Repetition frequency	1Hz～10Hz adjustable
Accuracy rate	≥98%
Beam angle	≤0.5mrad
Volume	≤51×35×45mm
Weight	≤75g
Supply voltage	DC9~15V
Operating temperature	-40℃~+60℃
Storage temperature	50℃~+70℃
