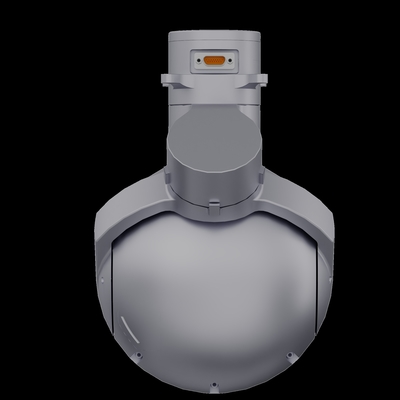

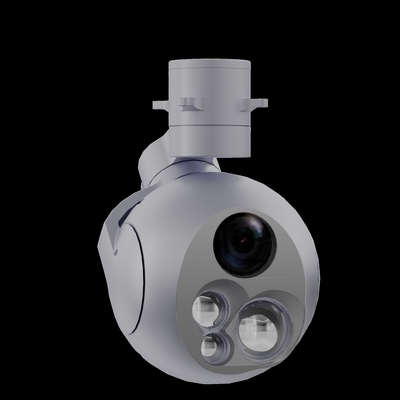

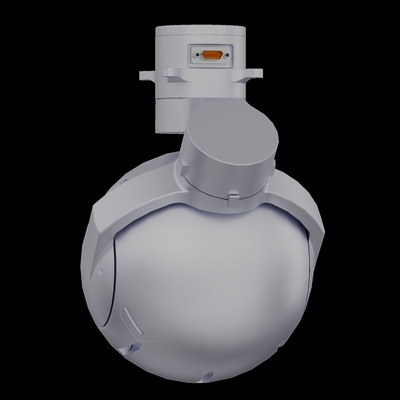

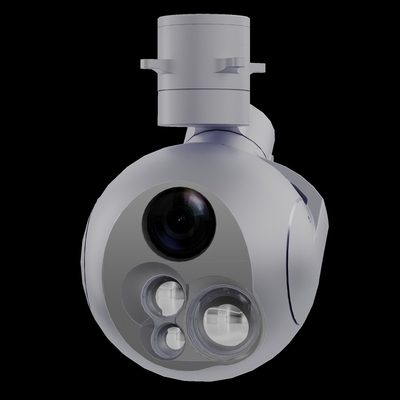

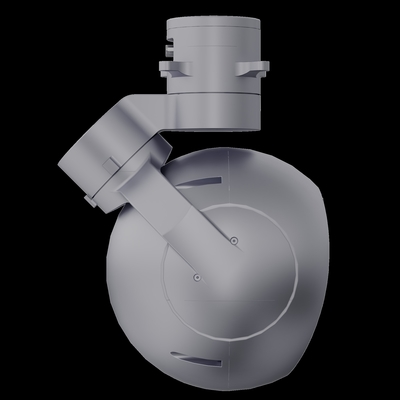

Premium LED Lighting System Aircraft Accessory Pod 10 Year Durability Warranty for General Aviation Aircraft

Large Image : Premium LED Lighting System Aircraft Accessory Pod 10 Year Durability Warranty for General Aviation Aircraft

Product Details:

Place of Origin:	Zhejiang, China
Model Number:	126T3-03-silver

Contact Now

Detailed Product Description

Condition:	New	Capacity:	>5

Performance Overview
Dimensions	≤126mmx137mmx210mm
Weight	≤1.43kg
Azimuth Angle Range	360° continuous
Pitch Angle Range	+20°~ -110°(horizontally forward is 0°)
Roll Angle Range	+30°- -30°
Stable Accuracy	≤0.1mrad(RMS)
Tracking Accuracy	≤0.2mrad(RMS)
Operating Temperature	-20℃~ +55℃℃
Electrical Parameters
Power Supply	12-36VDC power supply Average power consumption: ≤40W
External Interface	1 100M network digital video output (including communication)
External Interface		1 RS422, 1 RS232
Video storage	microSD card
Optical parameters
Visible light television	Pixels: 3840×2160 (storage) 1920×1080 (transmission)
		Field of view: 4.03°×2.27°~ 70.51°×39.66° (focal length: 4.4mm～88.4mm)
		Magnification: 20x optical, 60x hybrid
		Action distance for vehicle targets: Detection distance: ≥6km Identification distance: ≥4km
Infrared thermal imager	Pixels: 1280×1024
		Field of view: 24.75°×19.80°(Focal length: 35mm)
		Distance for vehicle targets
		Detection distance: ≥2km, Identification distance: ≥1.2km
Laser rangefinder	Wavelength: 1535nm
Laser rangefinder		Range: 50m～3000m
