LBR-DM1 Thermal Image Scope 640x512 Thermal Monocular 2000m Laser Rangefinder for Hunting Wildlife Observation Night Vision

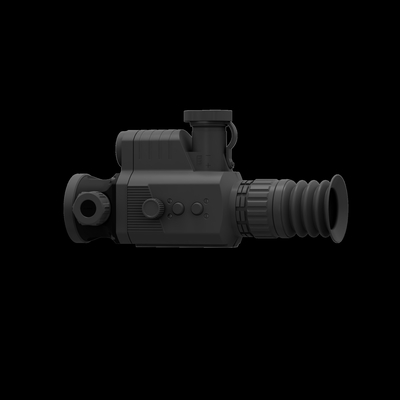

Large Image : LBR-DM1 Thermal Image Scope 640x512 Thermal Monocular 2000m Laser Rangefinder for Hunting Wildlife Observation Night Vision

Product Details:

Place of Origin:	Zhejiang, China

Contact Now

Detailed Product Description

Warranty:	1 Year	Function:	Video Recording
Size:	230 Mm75mm95 Mm	Magnification:	8X
Weight:	610g(without Battery)	Brightness Levels:	8 Levels
Type:	Monocular	Measure Range:	2600 M
Resolution:	640x512px	Camera Frame Rate:	60Hz
PIXEL SIZE:	12μm	RESPONSE BAND:	8~14μm
NETD:	Less Than<18mk(25°C ,F#=1.0)	INFRARED FOCAL LENGTH:	50 Mm
DETECTION RANGE:	2600 M	MINIMUM FOCUSING DISTANCE:	5m
F VALUE:	F1.0	NFRARED FIELD OF VIEW:	8.8° * 7.0°
IFOV:	0.24mrad

THERMAL IMAGING
DETECTOR TYPE	Vanadium Oxide Uncooled Infrared Focal Plane Detector
RESOLUTION RATIO	640 × 512
FRAME RATE	60Hz
PIXEL SIZE	12μm
RESPONSE BAND	8～ 14μm
NETD	Less than<18mk(25°C ， F#= 1.0)
INFRARED FOCAL LENGTH	50 mm
DETECTION RANGE	2600 m
MINIMUM FOCUSING DISTANCE	5m
F VALUE	F1.0
INFRARED FIELD OF VIEW	8.8 ° × 7.0°
IFOV	0.24mrad
IMAGE DISPLAY
DISPLAY RESOLUTION	1440*1080,0.4inch Micro-OLED
FALSE COLOR MODE	White heat, black heat, iron red, red heat, edge
EXIT PUPIL DIAMETER	5mm
EXIT PUPIL DISTANCE	40mm
DIOPTER
SYSTEM FEATURES
ELECTRONIC ZOOM	1~8X, step length 0.5
STANDBY MODE	Support
STORAGE	EMMC(32GB)
PIP	Support
DIGITAL PC	Support
HOTSPOT	Support
UNIFORMITY CORRECTION	Support
HOT TRACKS	Support
CROSSHAIR	Support
PHOTOGRAPH	Support, screenshot, with UI information
IMAGE FORMAT	Resolution Same as screen
VIDEO FORMAT	jpg
STORAGE ACCESS	Support (automatic), total recording time greater than 4 hours
MOBILE APP	mp4
ELECTRONIC ZOOM	USB/WIFI access
POWER SYSTEM
BATTERY TYPE	External rechargeable lithium battery, 18650
BATTERY WORKING TIME	6h
BATTERY CAPACITY DISPLAY	Support
ANTI-REVERSE BATTERY CONNECTION	Support
OVERVOLTAGE PROTECTION	Support
TYPE-C POWER SUPPLY	5V DC, 3A ,supports external power supply
GENERAL PARAMETERS
DIMENSIONS	230 mm x 75mm x 95 mm
WEIGHT	610g (without battery)
OPERATING TEMPERATURE	-20~60℃
CHARGING PORT	Type-C
LASER DISTANCE MEASUREMENT
WAVELENGTH	905 nm
MAXIMUM MEASUREMENT RANGE	2000m
MEASUREMENT ACCURACY	±1m

1、 Are you a manufacturer or a trading company? We have our own factory and the prices are all the lowest factory prices.Each product has been tested repeatedly by professional engineers! 2、ls it possible to get a sample? We offer sample when you pay sample fee. 3、What about after-sale service? 12 months warranty for all kinds of products. Ourexperienced technical team is ready to respond youwithin 24 hours. 4、How to place an order? a: Send us an inquiry. b: Confirm your wanted product. c: Confirm the price, freight cost and other details. d: Complete the payment. e: We start production and arrange the shipment. f: Customer will receive the product. 5、 How much for the shipping cost? According to your quantity and country. We are check the freight for you. and choosebest shipping way. 6、How do you ensure the quality of products? All of our products undergo strict quality control inspections during the productionprocess. Especially for exported products, a 72 hour aging test is required to ensurethat there are no issues before shipment.
