High Accuracy LRF-194 Laser Rangefinder with Slope Compensation for Golf and Construction

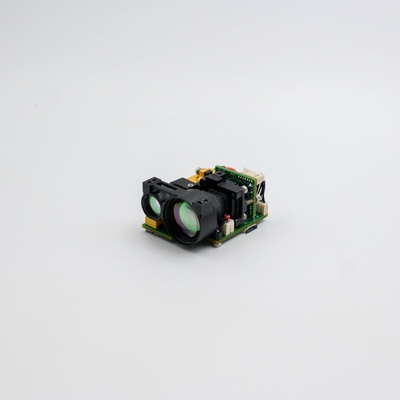

Large Image : High Accuracy LRF-194 Laser Rangefinder with Slope Compensation for Golf and Construction

Product Details:

Place of Origin:	Zhejiang, China

Contact Now

Detailed Product Description

Application:	Measure Distance And Then Calculate Area Volume Pythagoras	Meter Type:	Laser Distance Meters
Laser Wavelength:	1535±5nm	Minimum Measuring Range:	≤30m
Ranging Accuracy:	≤±1m	Repetition Frequency:	1Hz~10Hz Adjustable
Accuracy Rate:	≥98%	Beam Angle:	≤0.5mrad
Volume:	48.53626mm	Weight:	≤60g
Supply Voltage:	DC+5V	Operating Temperature:	-40℃~+60℃

Laser wavelength	1535±5nm
Maximum measuring range	Under the conditions of visibility not less than 10km, relative humidity not more than 80%, moderate atmospheric turbulence, target reflection coefficient 0.2, for a target of 2.3m×2.3m, the maximum measurement range is ≥3km
Minimum measuring range	≤30m
Ranging accuracy	≤±1m
Repetition frequency	1Hz～10Hz adjustable
Accuracy rate	≥98%
Beam angle	≤0.5mrad
Volume	48.5×36×26mm
Weight	≤60g
Supply voltage	DC+5V
Operating temperature	-40℃~+60℃
Storage temperature	-50℃~+70℃

1、 Are you a manufacturer or a trading company?

We have our own factory and the prices are all the lowest factory prices.Each product has been tested repeatedly by professional engineers!

2、ls it possible to get a sample?

We offer sample when you pay sample fee.

3、What about after-sale service?

12 months warranty for all kinds of products. Ourexperienced technical team is ready to respond youwithin 24 hours.

4、How to place an order?

a: Send us an inquiry.

b: Confirm your wanted product.

c: Confirm the price, freight cost and other details.

d: Complete the payment.

e: We start production and arrange the shipment.

f: Customer will receive the product.

5、 How much for the shipping cost?

According to your quantity and country. We are check the freight for you.

and choosebest shipping way.

6、How do you ensure the quality of products?

All of our products undergo strict quality control inspections during the productionprocess. Especially for exported products, a 72 hour aging test is required to ensurethat there are no issues before shipment.
