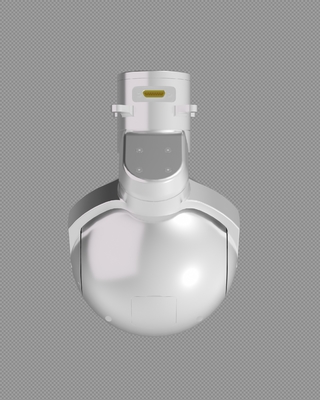

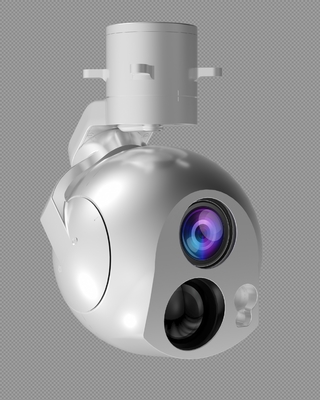

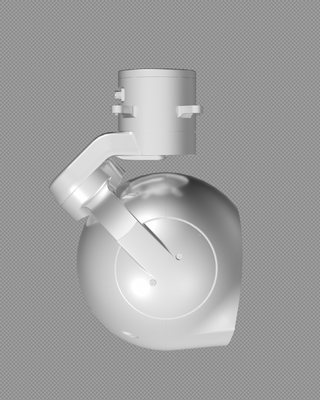

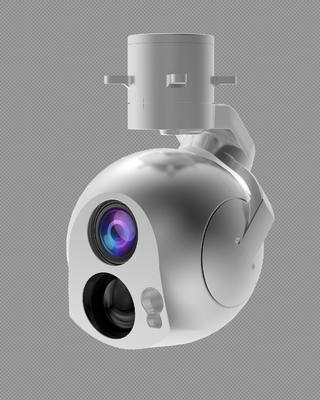

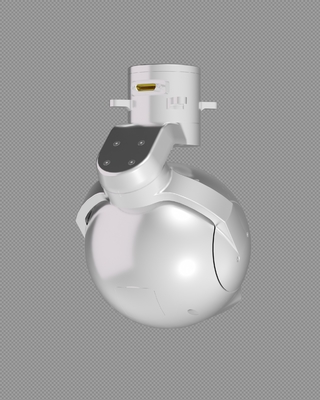

126T3-02 Professional Optoelectronic Payload Gimbal Laser Ranging Photoelectric Pod Thermal Imaging for Security UAV New

Large Image : 126T3-02 Professional Optoelectronic Payload Gimbal Laser Ranging Photoelectric Pod Thermal Imaging for Security UAV New

Product Details:

Place of Origin:	Zhejiang, China
Model Number:	126T3-02-silver

Contact Now

Detailed Product Description

Condition:	New	Dimensions:	≤126mm137mm210mm
Weight:	≤1.35kg	Azimuth Angle Range:	360° Continuous
Pitch Angle Range:	+20°~ -110° (horizontally Forward Is 0°)	Roll Angle Range:	+60°~ -60°
Stable Accuracy:	≤0.1mrad (RMS)	Tracking Accuracy:	≤0.2mrad (RMS)
Visible Light Television Pixels::	3840*2160	Infrared Thermal Imager Pixels:	640*512
Laser Rangefinder Range:	50m~3000m

Performance Overview
Dimensions	≤126mm×137mm×210mm
Weight	≤1.35kg
Azimuth Angle Range	360° continuous
Pitch Angle Range	+20°~ -110° (horizontally forward is 0°)
Roll Angle Range	+60°~ -60°
Stable Accuracy	≤0.1mrad (RMS)
Tracking Accuracy	≤0.2mrad (RMS)
Operating Temperature	-20～ +55℃
Electrical Parameters
Power Supply	12-36VDC power supply Average power consumption: ≤40W
External Interface	1 100M network digital video output (including communication)
External Interface		1 RS422, 1 RS232
Video storage	microSD card
Optical parameters
Visible light television	Pixels: 3840×2160
		Field of view: 4.1°×2.3°~ 70.2°×39.5°
		(Focal length: 4.4mm～88.4mm)
		Magnification: 20x optical, 60x hybrid
		Distance for vehicle targets: Detection distance: ≥6km Recognition distance: ≥4km
Infrared thermal imager	Pixels: 640×512
		Field of view: 9.7°×7.8° (Focal length: 45mm)
		Distance for vehicle targets: Detection distance: ≥2.8km, Recognition distance: ≥1.4km
Laser rangefinder	Wavelength: 1535nm
Laser rangefinder		Range: 50m～3000m

1、 Are you a manufacturer or a trading company?

We have our own factory and the prices are all the lowest factory prices.Each product has been tested repeatedly by professional engineers!

2、ls it possible to get a sample?

We offer sample when you pay sample fee.

3、What about after-sale service?

12 months warranty for all kinds of products. Ourexperienced technical team is ready to respond youwithin 24 hours.

4、How to place an order?

a: Send us an inquiry.

b: Confirm your wanted product.

c: Confirm the price, freight cost and other details.

d: Complete the payment.

e: We start production and arrange the shipment.

f: Customer will receive the product.

5、 How much for the shipping cost?

According to your quantity and country. We are check the freight for you.

and choosebest shipping way.

6、How do you ensure the quality of products?

All of our products undergo strict quality control inspections during the productionprocess. Especially for exported products, a 72 hour aging test is required to ensurethat there are no issues before shipment.
