Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting

Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting
Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting

Large Image :  Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting

Product Details:
Place of Origin: Zhejiang, China
Model Number: RTD6122CH
Contact Now
Detailed Product Description
MegaPixel: 640x512 Sensor Element Type: CMOS
Type: IR Detector Detector Technology: Vanadium Oxide Micro-bolometer
Spectral Range: 8-14 μm Pixel Pitch: 12 μm
NETD: <40 MK (@f/1.0,25 Hz, 300 K) Thermal Time Constant: <12ms
Frame: ≤60Hz Operating Temperature Range: -40°C~+85°C

Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting 0

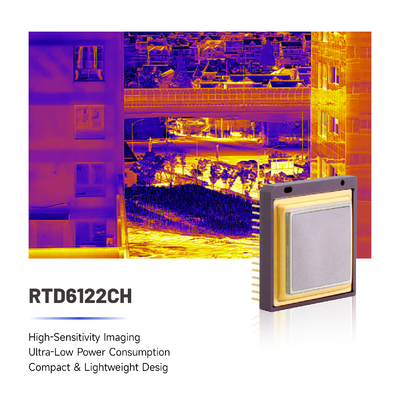

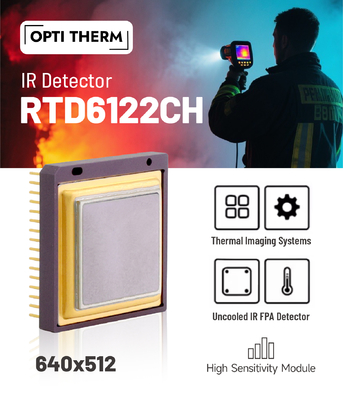

RTD6122CH
640×512 LWIR Imaging Detector
The RTD6122CH uncooled infrared focal plane array detector is utilized to detect long wavelength infrared (LWIR) signals. The focal plane array (FPA) is a vanadium-oxide (VOx)
microbolometer integrated in CMOS readout circuit (ROIC).
Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting 2
Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting 4
Specification
Description
Detector Technology
Vanadium oxide micro-bolometer
Spectral range
8-14 μm
Pixel pitch
12 μm
Array format
640×512 (effective pixels )
Operability
≥99.5%
NETD
<40 mK (@f/1.0,25 Hz, 300 K)
Thermal time constant
<12ms
Frame
≤60Hz
Power
<170 mW (@ 60 Hz, 25℃)
Output format
14 bits
Wide dynamic mode
Support radiometry from -40 to 600℃(@f/1.0)
Read mode
Rolling shutter mode
Mirror Function
Horizontal Flip,Vertical Flip

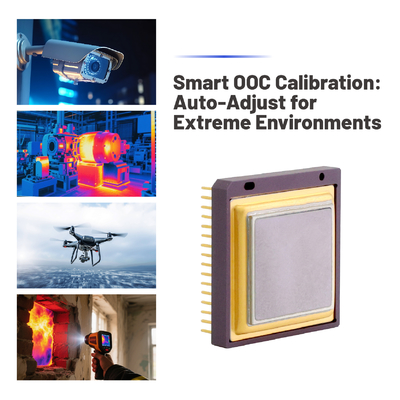

On-chip Offset Correction
6 bits
Operating temperature range
-40°C~+85°C
Packaging form
32Pin Ceramic Vacuum Packaging

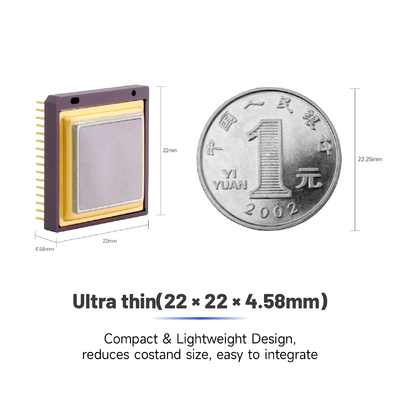

Detector size
22 × 22 × 4.58mm3
Weight
≤6g
Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting 6
Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting 8
Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting 10
Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting 12
Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting 14
Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting 16
Durable IP68 Waterproof Night Vision Device Long Range Thermal Imaging and IR Detector for Hunting 18
