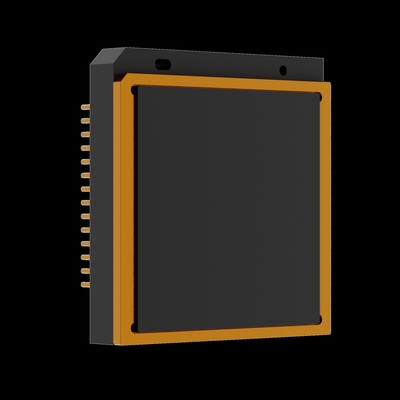

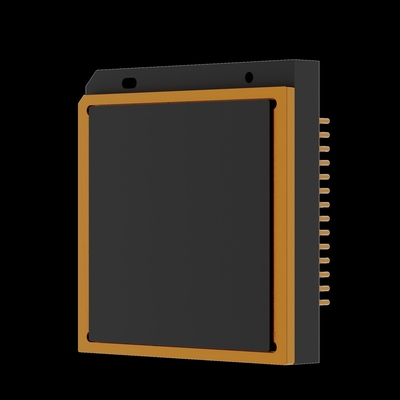

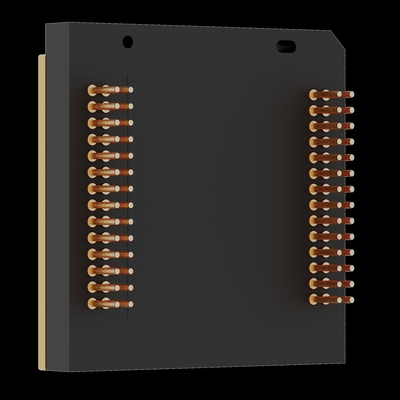

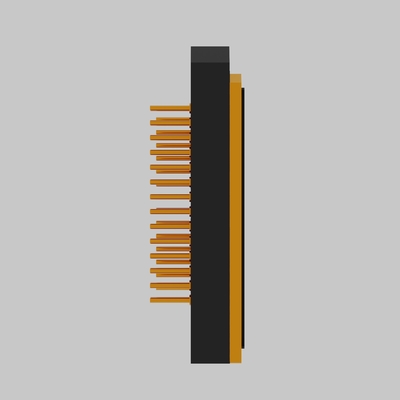

Compact 2X Digital Zoom Night Vision Thermal Imaging Device for Hunting Weatherproof IR Detector Construction

Large Image : Compact 2X Digital Zoom Night Vision Thermal Imaging Device for Hunting Weatherproof IR Detector Construction

Product Details:

Place of Origin:	Zhejiang, China
Model Number:	S123C

Contact Now

Detailed Product Description

MegaPixel:	1280*1024	Sensor Element Type:	CMOS
Type:	LWIR Imaging Detector	NETD:	<40mK (@f/ 1.0,30Hz,300K)
Typical Thermal Time Constant:	≤15ms	Frame Rate:	25/30Hz
Power Consumption:	<300mW (@ 30Hz,300K)	Weight:	≤10g
Operating Temperature Range:	-40°C~+85°C

Item	Index
Sensor technology	vanadium oxide micro-bolometer
Spectral range	8-14μm
Pixel pitch	12μm
Array format	1280 × 1024 (No dummy pixel)
Operability	>99.5%
NETD	<40mK (@f/ 1.0,30Hz,300K)
Typical thermal time constant	≤15ms
Frame Rate	25/30Hz
Power Consumption	<300mW (@ 30Hz,300K)
Output format	14bits
Read mode	Rolling shutter mode
Mirroring	X axis mirror, Y axis mirror
On-chip Offset Correction	6 bits
Operating temperature range	-40°C~+85°C
Packaging form	56-Pin Ceramic vacuum packaging
Packaging size	27×27×4.6mm3 (excluding pin size)
Weight	≤10g

1、 Are you a manufacturer or a trading company?

We have our own factory and the prices are all the lowest factory prices.Each product has been tested repeatedly by professional engineers!

2、ls it possible to get a sample?

We offer sample when you pay sample fee.

3、What about after-sale service?

12 months warranty for all kinds of products. Ourexperienced technical team is ready to respond youwithin 24 hours.

4、How to place an order?

a: Send us an inquiry.

b: Confirm your wanted product.

c: Confirm the price, freight cost and other details.

d: Complete the payment.

e: We start production and arrange the shipment.

f: Customer will receive the product.

5、 How much for the shipping cost?

According to your quantity and country. We are check the freight for you.

and choosebest shipping way.

6、How do you ensure the quality of products?

All of our products undergo strict quality control inspections during the productionprocess. Especially for exported products, a 72 hour aging test is required to ensurethat there are no issues before shipment.
