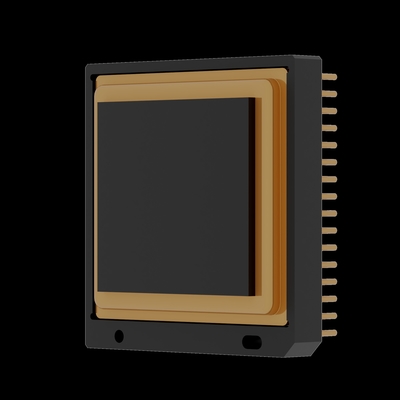

Cost Effective IR Core RTD3122CH Infrared Thermal Detector Thermal Lmaging Module Bulk Order for OEM Thermal Camera Makers

Large Image : Cost Effective IR Core RTD3122CH Infrared Thermal Detector Thermal Lmaging Module Bulk Order for OEM Thermal Camera Makers

Product Details:

Place of Origin:	Zhejiang, China
Model Number:	RTD3122CH

Contact Now

Detailed Product Description

Image Stabilization:	NO	MegaPixel:	384*288
Special Feature:	Mini	Sensor Element Type:	CMOS
Type:	IR Detector	NETD:	<40mK (@f/1.0,50Hz,300K)
Typical Thermal Time Constant:	<12ms	Frame:	≤60Hz
Spectra Range:	8-14μm	Operating Temperature:	-40°C~+85°C

Item	Specification
Sensor technology	vanadium oxide micro-bolometer
Spectra range	8-14μm
Pixel pitch	12μm
Array format	384×288 (No dummy pixel)
Operability	≥99.5%
NETD	<40mK (@f/1.0,50Hz,300K)
Typical thermal time constant	<12ms
Frame	≤60Hz
Power	<110mW (@ 50Hz,25℃)
Length of digital output	14bits
Wide dynamic mode	Support -40~600℃ temperature measurement(@f/1.0)
Read mode	Rolling shutter mode
mirroring	X axel mirror 、Y axel mirror
On-chip Offset Correction	6 bits
Operating temperature	-40°C~+85°C

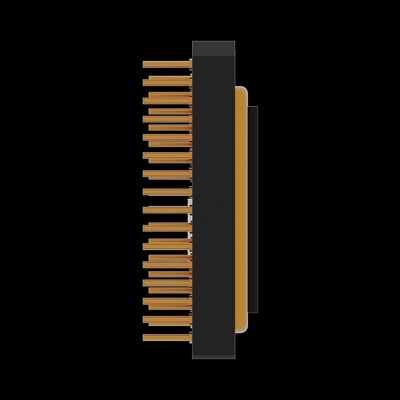

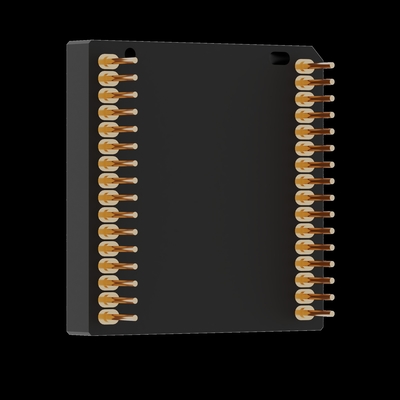

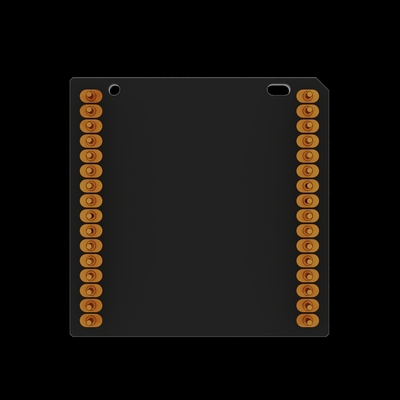

Packaging form	32-Pin Ceramic vacuum packaging
Packaging size	22 × 22×4.58mm3 (excluding pin size)
Weight	≤6g

1、 Are you a manufacturer or a trading company?

We have our own factory and the prices are all the lowest factory prices.Each product has been tested repeatedly by professional engineers!

2、ls it possible to get a sample?

We offer sample when you pay sample fee.

3、What about after-sale service?

12 months warranty for all kinds of products. Ourexperienced technical team is ready to respond youwithin 24 hours.

4、How to place an order?

a: Send us an inquiry.

b: Confirm your wanted product.

c: Confirm the price, freight cost and other details.

d: Complete the payment.

e: We start production and arrange the shipment.

f: Customer will receive the product.

5、 How much for the shipping cost?

According to your quantity and country. We are check the freight for you.

and choosebest shipping way.

6、How do you ensure the quality of products?

All of our products undergo strict quality control inspections during the productionprocess. Especially for exported products, a 72 hour aging test is required to ensurethat there are no issues before shipment.
