Lightweight Solar Powered Night Vision Hunting IR Scope Auto Focus Lens with 50-hour Battery Life Detector

Large Image : Lightweight Solar Powered Night Vision Hunting IR Scope Auto Focus Lens with 50-hour Battery Life Detector

Product Details:

Place of Origin:	Zhejiang, China
Model Number:	OHLE3123

Contact Now

Detailed Product Description

MegaPixel:	384*288	Sensor Element Type:	CMOS
Type:	IR Detector	Sensor Technology:	Vanadium Oxide Micro-bolometer
Spectra Range:	8-14μm	NETD:	<40mK
Measuring Range:	-40~600℃	Operating Temperature:	-40°C~+85°C
Packaging Size:	10.410.44.3mm³	Weight:	≤0.6g

Item	Specification
Sensor technology	vanadium oxide micro-bolometer
Spectra range	8-14μm
Pixel pitch	12μm
Array format	384×288
Operability	≥99.5%
NETD	<40mK
Typical thermal time constant	<15ms
Frame	≤60Hz
Power	<65mW
Length of digital output	14bits
Input Interface	I2C interface (MODE0)
Input Interface		2 bits parallel input interface (MODE1)
Mirror function	Mirror in X and Y directions
read mode	Read line by line
Measuring range	-40~600℃
output polarity	black hot
Operating temperature	-40°C~+85°C

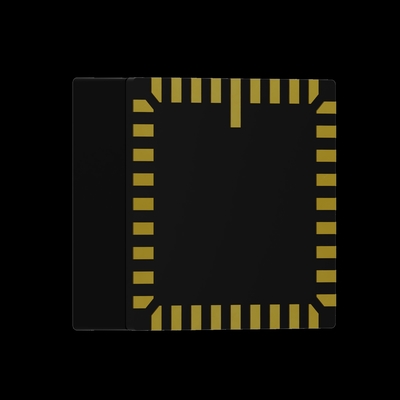

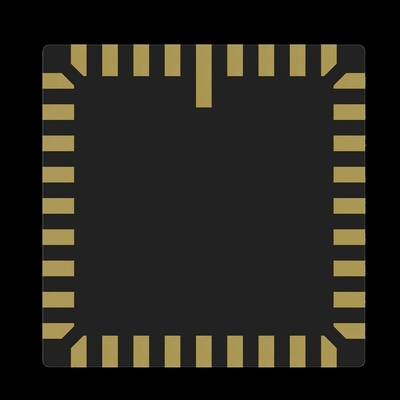

Packaging form	36-Pin SWLP
Packaging size	10.4×10.4×4.3mm3
Weight	≤0.6g

1、 Are you a manufacturer or a trading company?

We have our own factory and the prices are all the lowest factory prices.Each product has been tested repeatedly by professional engineers!

2、ls it possible to get a sample?

We offer sample when you pay sample fee.

3、What about after-sale service?

12 months warranty for all kinds of products. Ourexperienced technical team is ready to respond youwithin 24 hours.

4、How to place an order?

a: Send us an inquiry.

b: Confirm your wanted product.

c: Confirm the price, freight cost and other details.

d: Complete the payment.

e: We start production and arrange the shipment.

f: Customer will receive the product.

5、 How much for the shipping cost?

According to your quantity and country. We are check the freight for you.

and choosebest shipping way.

6、How do you ensure the quality of products?

All of our products undergo strict quality control inspections during the productionprocess. Especially for exported products, a 72 hour aging test is required to ensurethat there are no issues before shipment.
