MINI2 384 * 288 Infrared Thermal Imaging Camera LWIR for UAV and Industrial Use for Hunting Cameras

Large Image : MINI2 384 * 288 Infrared Thermal Imaging Camera LWIR for UAV and Industrial Use for Hunting Cameras

Product Details:

Place of Origin:	Zhejiang, China
Model Number:	MINI2 384 25mm

Contact Now

Detailed Product Description

Sensor Element Type:	CMOS	MegaPixel:	384*288
Optical Zoom:	Fixed Focus	Image Stabilization:	NO
Type:	Thermal Camera	Lens:	25010X
Power Source Type:	USB Powered	Application:	Outdoor, Indoor
Auto Focus:	NO	Waterproof Grade:	Not Water Resistant
Night Vision Distance:	2.8km	Detector Type:	Vanadium Oxide Uncooled Infrared Focal Plane Detector
Effective Frame Rate:	30/60Hz	Pixel Pitch:	12μm
Spectral Band:	8~14μm	NETD:	≤40mK@25℃,F#1.0,25Hz
Thermal Time Constant:	<12ms	Non-uniformity Correction:	Shutter Correction/shutter-less Algorithm Correction
Polarity/Palette:	White-hot/Black-hot/Various Palettes Supported	Analog Video:	PAL/NTSC
Digital Video:	DVP/BT656/ USB2.0/MIPI

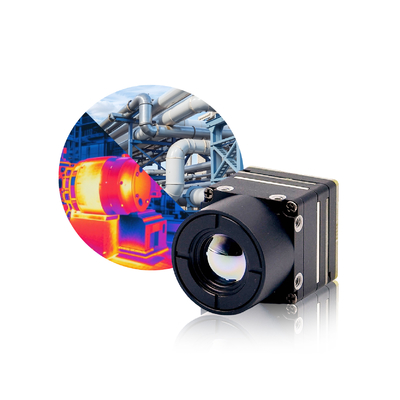

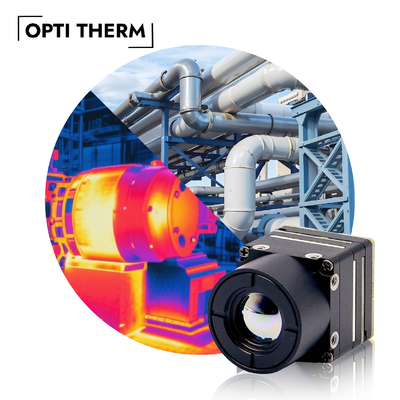

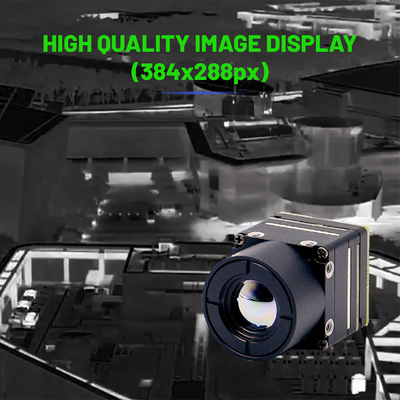

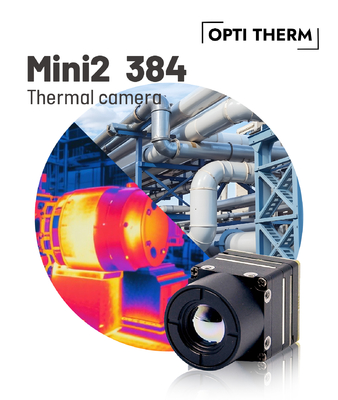

MINI2 384 THERMAL CAMERA

The MINI2 384 series uncooled infrared module features high performance, small size, light weight, low power consumption, and low cost, meeting the application requirements of SWaP (Size, Weight, and Power/Price). The entire series is equipped with a smooth and seamless algorithm, and is equipped with a new generation of infrared dedicated image algorithm, resulting in delicate and clear image quality. The module provides multiple digital interfaces that can be flexibly connected to various intelligent processing platforms.

Overview	MINI2 384
Detector Type	Vanadium Oxide Uncooled Infrared Focal Plane Detector
Resolution	384×288
Effective Frame Rate	30/60Hz
Pixel Pitch	12μm
Spectral Band	8～14μm
NETD	≤40mK@25℃,F#1.0,25Hz
Thermal Time Constant	＜12ms
Image Adjustment
Non-uniformity Correction	Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment	0~100, optional
Polarity/Palette	White-hot/Black-hot/Various palettes supported
Digital zoom	1.0~8.0×continuous zoom (step size: 0.1)
Image Mirroring	Vertical/Horizontal/Diagonal
Electricity Parameters
Analog Video	PAL/NTSC
Digital Video	DVP/BT656/ USB2.0/MIPI
Communication Interface	UART/I2C/USB2.0
Power Supply Input	5V
Typical power consumption of USB output @25℃	＜0.42W
Physical Characteristics
Weight (without lens)	<7g
Dimensions (without lens)	21×21×10.3 mm
Environment Adaptability
Operating Temperature	-40℃~+80℃
Storage Temperature	-50℃~+85℃
Humidity	5%–95%, non-condensing
Vibration	6.06g, random vibration, all axes
Impact	80g, 4ms, final peak sawtooth wave, three axes and six directions

Lens Selection

Lens size	FOV	Detection range	F Number
9.1mm	28.9°×21.7°	1.1km	1.0
15mm	17.5°×13.1°	1.7km	1.0
25mm	10.5°×7.9°	2.8km	1.0
35mm	7.5°×5.7°	3.9km	1.0
