Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection

Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection
Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection

Large Image :  Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection

Product Details:
Model Number: MINI2 256 15mm
Contact Now
Detailed Product Description
Display Resolution: 256x192 Field Of View: 11.7°x8.8°
Thermal Color Palettes: 6 Color Palettes Thermal Image Pixel: 256x192
Image Frequency: 25hz Thermal Sensitivity: ≤40mK@25℃,F#1.0,25Hz
NETD: ≤40mK@25℃,F#1.0,25Hz Thermal Time Constant: <12ms
Effective Frame Rate: 25/50Hz Non-uniformity Correction: Shutter Correction/shutter-less Algorithm Correction
Analog Video: PAL/NTSC

Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection 0

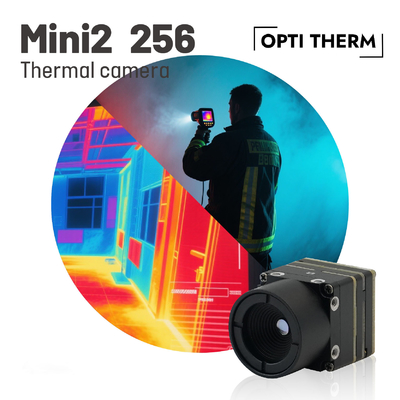

MINI2 256
4mm Lens THERMAL CAMERA

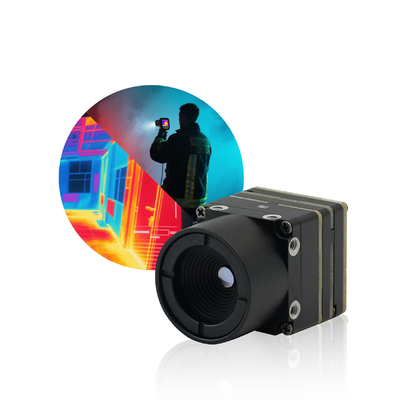

The MINI2 256 series uncooled infrared module features high performance, small size, light weight, low power consumption, and low cost, meeting the application requirements of SWaP (Size, Weight, and Power/Price). The entire series is equipped with a smooth and seamless algorithm, and is equipped with a new generation of infrared dedicated image algorithm, resulting in delicate and clear image quality. The infrared thermal camera provides multiple digital interfaces that can be flexibly connected to various intelligent processing platforms.
Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection 2
Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection 4
Overview
MINI2 256 Thermal Camera
Detector Type
Vanadium Oxide Uncooled Infrared Focal Plane Detector
Resolution
256×192
Effective Frame Rate
25/50Hz
Pixel Pitch
12μm
Spectral Band
8～14μm
NETD
≤40mK@25℃,F#1.0,25Hz
Thermal Time Constant
＜12ms
Image Adjustment
Non-uniformity Correction
Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment
0~100, optional

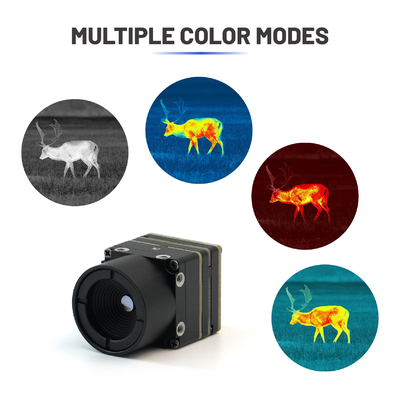

Polarity/Palette
White-hot/Black-hot/Various palettes supported
Digital zoom
1.0~8.0×continuous zoom (step size: 0.1)
Image Mirroring
Vertical/Horizontal/Diagonal
Electricity Parameters
Analog Video
PAL/NTSC
Digital Video
DVP/BT656/ USB2.0/MIPI
Communication Interface
UART/I2C/USB2.0
Power Supply Input
5V
Typical power consumption of USB output @25℃
＜0.35W
Physical Characteristics
Weight (without lens)
<7g
Dimensions (without lens)
21×21×10.3 mm
Environment Adaptability
Operating Temperature
-40℃~+80℃
Storage Temperature
-50℃~+85℃
Humidity
5%–95%, non-condensing
Vibration
6.06g, random vibration, all axes
Impact
80g, 4ms, final peak sawtooth wave, three axes and six directions
Lens Selection
Lens size
FOV
Detection range
F  Number
9.1mm
19.3°×14.5°
1.1km
1.0
15mm
11.7°×8.8°
1.7km
1.0
25mm
17.5°×14.0°
2.8km
1.0
Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection 6
Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection 8
Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection 10
Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection 12
Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection 14
Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection 16
Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection 18
