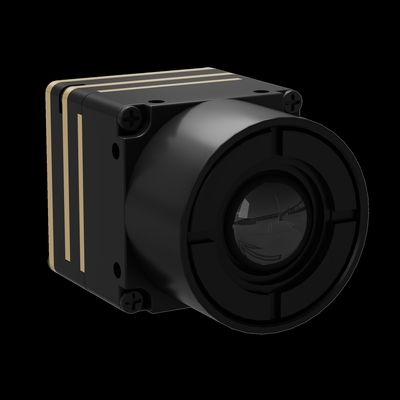

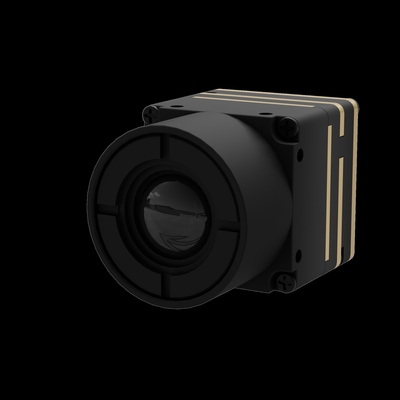

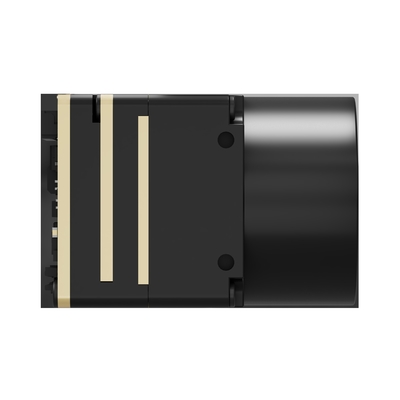

55mm Lens Infrared Thermal Imaging Module Infrared Thermal Camera 640 Resolution High Accuracy Machine Vision OEM

Large Image : 55mm Lens Infrared Thermal Imaging Module Infrared Thermal Camera 640 Resolution High Accuracy Machine Vision OEM

Product Details:

Place of Origin:	Zhejiang, China
Model Number:	mini2 640 55mm

Contact Now

Detailed Product Description

Sensor Element Type:	CMOS	MegaPixel:	640*512
Optical Zoom:	Fixed Focus	Type:	Infrared Hunting Camera, Thermal Camera
Lens:	55010X	Power Source Type:	USB Powered
Application:	Outdoor, Indoor	Auto Focus:	NO
Night Vision Distance:	6.1km	Pixel Pitch:	12μm
Spectral Band:	8~14μm	NETD:	≤40mK@25℃,F#1.0,25Hz
Non-uniformity Correction:	Shutter Correction/shutter-less Algorithm Correction	Digital Zoom:	1.0~8.0X Continuous Zoom (step Size: 0.1)
Analog Video:	PAL/NTSC	Digital Video:	DVP/BT656/ USB2.0/MIPI
Communication Interface:	UART/I2C/USB2.0

Overview	MINI2
Detector Type	Vanadium Oxide Uncooled Infrared Focal Plane Detector
Resolution	640×512
Effective Frame Rate	30/60Hz
Pixel Pitch	12μm
Spectral Band	8～14μm
NETD	≤40mK@25℃,F#1.0,25Hz
Thermal Time Constant	＜12ms
Image Adjustment
Non-uniformity Correction	Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment	0~100, optional
Polarity/Palette	White-hot/Black-hot/Various palettes supported
Digital zoom	1.0~8.0×continuous zoom (step size: 0.1)
Image Mirroring	Vertical/Horizontal/Diagonal
Electricity Parameters
Analog Video	PAL/NTSC
Digital Video	DVP/BT656/ USB2.0/MIPI
Communication Interface	UART/I2C/USB2.0
Power Supply Input	5V
Typical power consumption of USB output @25℃	＜0.7W
Physical Characteristics
Weight (without lens)	<8.6g
Dimensions (without lens)	21×21×10.3 mm
Environment Adaptability
Operating Temperature	-40℃~+80℃
Storage Temperature	-50℃~+85℃
Humidity	5%–95%, non-condensing
Vibration	6.06g, random vibration, all axes
Impact	80g, 4ms, final peak sawtooth wave, three axes and six directions

1、 Are you a manufacturer or a trading company?

We have our own factory and the prices are all the lowest factory prices.Each product has been tested repeatedly by professional engineers!

2、ls it possible to get a sample?

We offer sample when you pay sample fee.

3、What about after-sale service?

12 months warranty for all kinds of products. Ourexperienced technical team is ready to respond youwithin 24 hours.

4、How to place an order?

a: Send us an inquiry.

b: Confirm your wanted product.

c: Confirm the price, freight cost and other details.

d: Complete the payment.

e: We start production and arrange the shipment.

f: Customer will receive the product.

5、 How much for the shipping cost?

According to your quantity and country. We are check the freight for you.

and choosebest shipping way.

6、How do you ensure the quality of products?

All of our products undergo strict quality control inspections during the productionprocess. Especially for exported products, a 72 hour aging test is required to ensurethat there are no issues before shipment.
