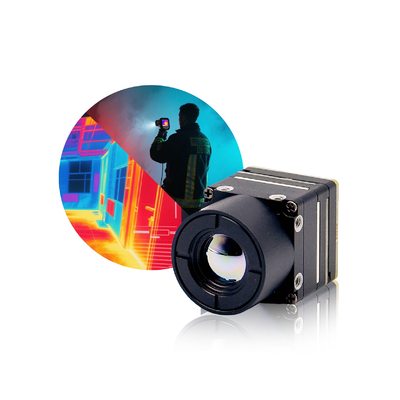

MINI2 640*512 Infrared Thermal Imaging Module 9.1mm Focal Length for Industrial Hunting Cameras

Large Image : MINI2 640*512 Infrared Thermal Imaging Module 9.1mm Focal Length for Industrial Hunting Cameras

Product Details:

Place of Origin:	Zhejiang, China
Model Number:	MINI2 640 9.1mm

Contact Now

Detailed Product Description

Display Resolution:	30/60Hz	Field Of View:	48°x38.4°
Thermal Color Palettes:	11 Color Palettes	Thermal Image Pixel:	30/60Hz
Image Frequency:	30/60Hz	Thermal Sensitivity:	≤40mK@25℃,F#1.0,25Hz
Resolution:	640*512	Effective Frame Rate:	30/60Hz
Pixel Pitch:	12μm	Spectral Band:	8~14μm
NETD:	≤40mK@25℃,F#1.0,25Hz	Thermal Time Constant:	<12ms
Non-uniformity Correction:	Shutter Correction/shutter-less Algorithm Correction	Brightness/Contrast Adjustment:	0~100, Optional
Polarity/Palette:	White-hot/Black-hot/Various Palettes Supported	Operating Temperature:	-40℃~+80℃

MINI2 640 THERMAL CAMERA

The MINI2 640 series uncooled infrared module features high performance, small size, light weight, low power consumption, and low cost, meeting the application requirements of SWaP (Size, Weight, and Power/Price). The entire series is equipped with a smooth and seamless algorithm, and is equipped with a new generation of infrared dedicated image algorithm, resulting in delicate and clear image quality. The module provides multiple digital interfaces that can be flexibly connected to various intelligent processing platforms.

Overview	MINI2 640
Detector Type	Vanadium Oxide Uncooled Infrared Focal Plane Detector
Resolution	640×512
Effective Frame Rate	30/60Hz
Pixel Pitch	12μm
Spectral Band	8～14μm
NETD	≤40mK@25℃,F#1.0,25Hz
Thermal Time Constant	＜12ms
Image Adjustment
Non-uniformity Correction	Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment	0~100, optional

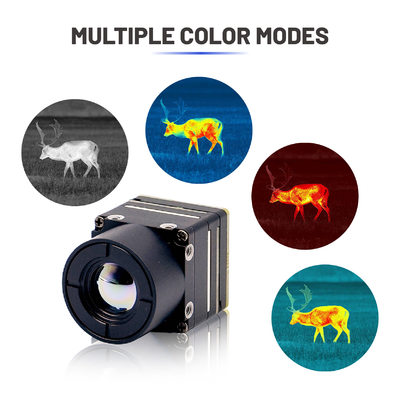

Polarity/Palette	White-hot/Black-hot/Various palettes supported
Digital zoom	1.0~8.0×continuous zoom (step size: 0.1)
Image Mirroring	Vertical/Horizontal/Diagonal
Electricity Parameters
Analog Video	PAL/NTSC
Digital Video	DVP/BT656/ USB2.0/MIPI
Communication Interface	UART/I2C/USB2.0
Power Supply Input	5V
Typical power consumption of USB output @25℃	＜0.7W
Physical Characteristics
Weight (without lens)	<8.6g
Dimensions (without lens)	21×21×10.3 mm
Environment Adaptability
Operating Temperature	-40℃~+80℃
Storage Temperature	-50℃~+85℃
Humidity	5%–95%, non-condensing
Vibration	6.06g, random vibration, all axes
Impact	80g, 4ms, final peak sawtooth wave, three axes and six directions

Lens Selection

Lens size	FOV	Detection range	F Number
9.1mm	48°×38.4°	1.1km	1.0
13.5mm	31.9°×25.7°	1.5km	1.0
25mm	17.5°×14.0°	2.8km	1.0
35mm	12.5°×10.0°	3.9km	1.0
55mm	8.0°×6.4°	6.1km	1.0
