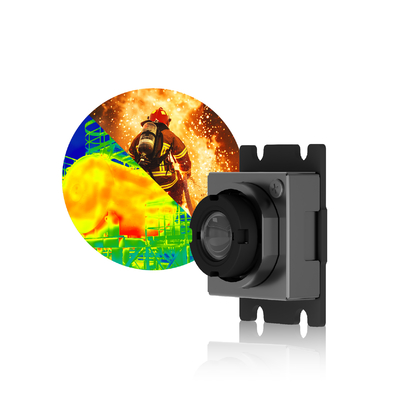

Tiny1-C Mini Uncooled Infrared Thermal Camera 256x192 3.2mm with CMOS Sensor for Security Inspection and Hunting Cameras

Large Image : Tiny1-C Mini Uncooled Infrared Thermal Camera 256x192 3.2mm with CMOS Sensor for Security Inspection and Hunting Cameras

Product Details:

Place of Origin:	Zhejiang, China
Model Number:	TINY1-C 256 3.2mm

Contact Now

Detailed Product Description

Sensor Element Type:	CMOS	MegaPixel:	256x192
Optical Zoom:	Fixed Focus	Image Stabilization:	NO
Type:	Wildlife Camera, Security Camera, Infrared Hunting Camera, Thermal Camera	Viewing Angle:	56°*42°
Lens:	3.2mm	Power Source Type:	USB Powered
Application:	Smart Life, Handheld Terminal, Security Inspection, Fire Safety, Medical Health	Auto Focus:	NO
Waterproof Grade:	Not Water Resistant	Night Vision Distance:	320m
Focal Length:	3.2mm	Detector:	Vanadium Oxide Uncooled Infrared Focal Plane Detector
IR Wavelength:	8~14μm	NETD:	<40mK @25℃, F#1.0, 25Hz
Thermal Time Constant:	<10ms	Detector Framerate:	≤25Hz
Non-uniformity Correction:	Auto Shutter Correction	Temperature Measurement Range:	-15℃~150℃ (high Quality) 50℃~550℃ (wide Range)
Control Interface:	SPI/DVP	Core Dimensions:	13.2mm13.2mm8.5mm (see Mechanical Drawings)

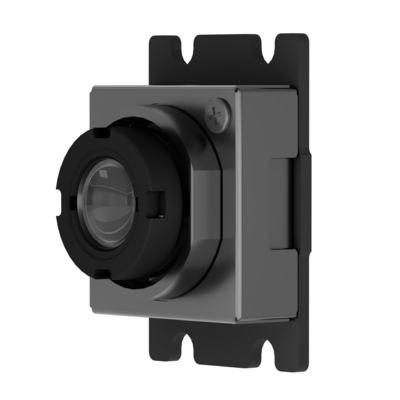

TINY1-C THERMAL IMAGING CAMERA

TINY1-C is a long wave infrared (8-14 μ m, LWIR) miniature thermal imaging module that can convert an object's own thermal radiation into images and temperature data.

This product has small size, light weight, low power consumption, and good image quality, and is suitable for industrial temperature measurement, security monitoring, intelligent IoT and other fields.

Details Images

Product Paramenters

System Overview
Detector	Vanadium Oxide Uncooled Infrared Focal Plane Detector
IR wavelength	8~14μm
Resolution	256×192/160×120
Pixel pitch	12μm
NETD	＜40mK @25℃, F#1.0, 25Hz
Thermal time constant	＜10ms
Detector framerate	≤25Hz
Non-uniformity correction	Auto shutter correction
Image output formats	10bit/14bit
Focus method	Fixed focus

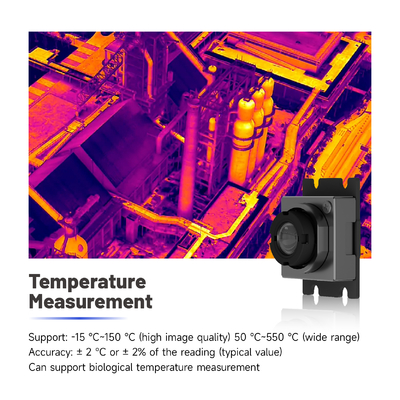

Thermography
Temperature measurement range	-15℃~150℃ (high quality) 50℃~550℃ (wide range)
Temperature measurement accuracy	±2℃ or ±2% (typ.)
Temperature measurement accuracy		Support body temperature detection
Power
Video interfaces	3.3V, 5V
Control interface	SPI/DVP
Typical power consumption	I2C
Video interfaces	Normal mode: 240mW (typ.)
Video interfaces		Peak (shutter power consumption): 600mW (typ.)
Physical Attributes (with lens and flange)

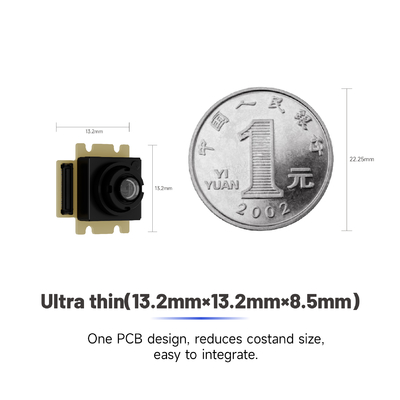

Core dimensions (w×l×h）	13.2mm×13.2mm×8.5mm (see mechanical drawings)
Environmental
Operating temperature range	Imaging: -40℃~80℃
Operating temperature range		Temperature measurement: -10℃~75℃
Storage temperature range	-45℃~85℃
Shock	25g, 11msec, half sine wave, 3 axes
