MINI2 256 Compact Thermal Imaging Camera Infrared Thermal Module for UAV Industrial Inspection Category Hunting Cameras

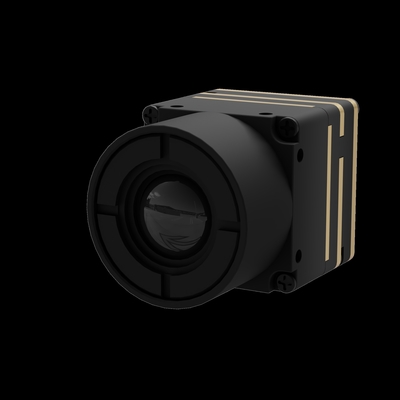

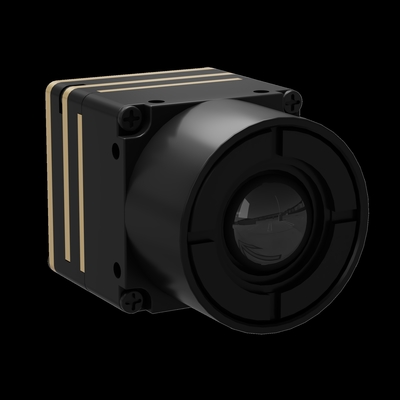

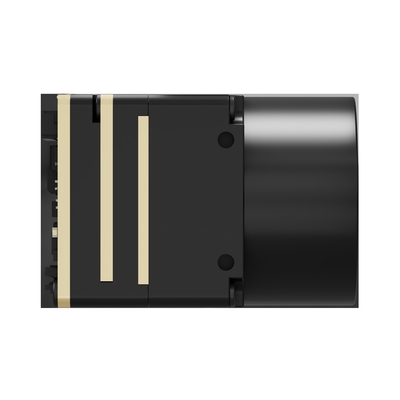

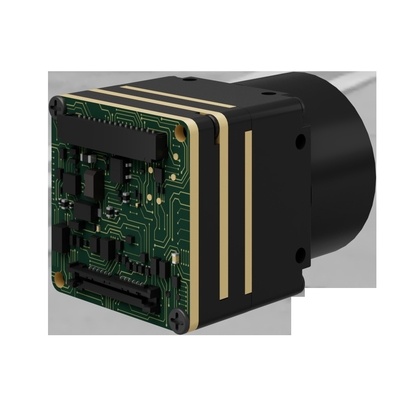

Large Image : MINI2 256 Compact Thermal Imaging Camera Infrared Thermal Module for UAV Industrial Inspection Category Hunting Cameras

Product Details:

Place of Origin:	Zhejiang, China
Model Number:	mini2 256 13mm

Contact Now

Detailed Product Description

Sensor Element Type:	CMOS	MegaPixel:	256x192
Optical Zoom:	Fixed Focus	Image Stabilization:	NO
Type:	Thermal Camera	Viewing Angle:	13.6°*10.2°
Lens:	13510X	Power Source Type:	USB Powered
Application:	Outdoor, Indoor	Auto Focus:	NO
Waterproof Grade:	Not Water Resistant	Night Vision Distance:	1.5km
Effective Frame Rate:	25/50Hz	Spectral Band:	8~14μm
NETD:	≤40mK@25℃,F#1.0,25Hz	Non-uniformity Correction:	Shutter Correction/shutter-less Algorithm Correction
Polarity/Palette:	White-hot/Black-hot/Various Palettes Supported	Analog Video:	PAL/NTSC
Digital Video:	DVP/BT656/ USB2.0/MIPI	Communication Interface:	UART/I2C/USB2.0
Operating Temperature:	-40℃~+80℃	Storage Temperature:	-50℃~+85℃

Overview	MINI2 256
Detector Type	Vanadium Oxide Uncooled Infrared Focal Plane Detector
Resolution	256×192
Effective Frame Rate	25/50Hz
Pixel Pitch	12μm
Spectral Band	8～14μm
NETD	≤40mK@25℃,F#1.0,25Hz
Thermal Time Constant	＜12ms
Image Adjustment
Non-uniformity Correction	Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment	0~100, optional
Polarity/Palette	White-hot/Black-hot/Various palettes supported
Digital zoom	1.0~8.0×continuous zoom (step size: 0.1)
Image Mirroring	Vertical/Horizontal/Diagonal
Electricity Parameters
Analog Video	PAL/NTSC
Digital Video	DVP/BT656/ USB2.0/MIPI
Communication Interface	UART/I2C/USB2.0
Power Supply Input	5V
Typical power consumption of USB output @25℃	＜0.35W
Physical Characteristics
Weight (without lens)	<7g
Dimensions (without lens)	21×21×10.3 mm
Environment Adaptability
Operating Temperature	-40℃~+80℃
Storage Temperature	-50℃~+85℃
Humidity	5%–95%, non-condensing
Vibration	6.06g, random vibration, all axes
Impact	80g, 4ms, final peak sawtooth wave, three axes and six directions

1、 Are you a manufacturer or a trading company?

We have our own factory and the prices are all the lowest factory prices.Each product has been tested repeatedly by professional engineers!

2、ls it possible to get a sample?

We offer sample when you pay sample fee.

3、What about after-sale service?

12 months warranty for all kinds of products. Ourexperienced technical team is ready to respond youwithin 24 hours.

4、How to place an order?

a: Send us an inquiry.

b: Confirm your wanted product.

c: Confirm the price, freight cost and other details.

d: Complete the payment.

e: We start production and arrange the shipment.

f: Customer will receive the product.

5、 How much for the shipping cost?

According to your quantity and country. We are check the freight for you.

and choosebest shipping way.

6、How do you ensure the quality of products?

All of our products undergo strict quality control inspections during the productionprocess. Especially for exported products, a 72 hour aging test is required to ensurethat there are no issues before shipment.
