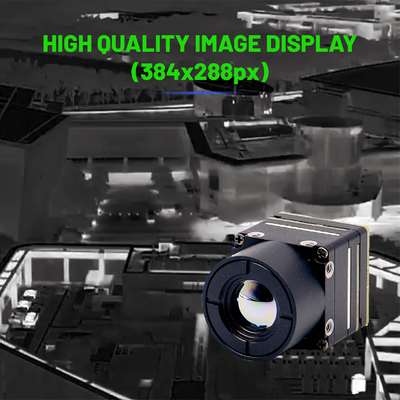

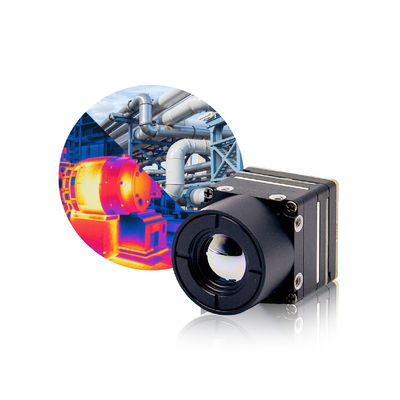

Mini2 Portable Thermal Camera for Outdoor Night Vision 384*288 Resolution Handheld Helmet Compatible Convenient Portable CMOS

Large Image : Mini2 Portable Thermal Camera for Outdoor Night Vision 384*288 Resolution Handheld Helmet Compatible Convenient Portable CMOS

Product Details:

Place of Origin:	Zhejiang, China
Model Number:	MINI2 384 55mm

Contact Now

Detailed Product Description

Sensor Element Type:	CMOS	MegaPixel:	384*288
Optical Zoom:	Fixed Focus	Image Stabilization:	NO
Special Feature:	Mini	Memory Card Type:	SD Card
Type:	Thermal Camera, Uncooled Infrared Thermal Camera	Lens:	55010X
Power Source Type:	USB Powered	Application:	Outdoor, Indoor
Auto Focus:	NO	Waterproof Grade:	Not Water Resistant
Night Vision Distance:	6.1 Km	Detector Type:	Vanadium Oxide Uncooled Infrared Focal Plane Detector
Spectral Band:	8~14μm	NETD:	≤40mK@25℃,F#1.0,25Hz
Non-uniformity Correction:	Shutter Correction/shutter-less Algorithm Correction	Brightness/Contrast Adjustment:	0~100, Optional
Analog Video:	PAL/NTSC	Digital Video:	DVP/BT656/ USB2.0/MIPI

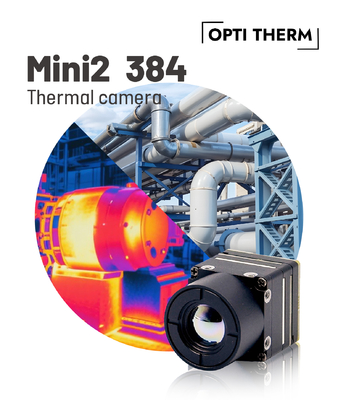

MINI2 384 THERMAL CAMERA

The MINI2 384 series uncooled infrared module features high performance, small size, light weight, low power consumption, and low cost, meeting the application requirements of SWaP (Size, Weight, and Power/Price). The entire series is equipped with a smooth and seamless algorithm, and is equipped with a new generation of infrared dedicated image algorithm, resulting in delicate and clear image quality. The module provides multiple digital interfaces that can be flexibly connected to various intelligent processing platforms.

Overview	MINI2 384
Detector Type	Vanadium Oxide Uncooled Infrared Focal Plane Detector
Resolution	384×288
Effective Frame Rate	30/60Hz
Pixel Pitch	12μm
Spectral Band	8～14μm
NETD	≤40mK@25℃,F#1.0,25Hz
Thermal Time Constant	＜12ms
Image Adjustment
Non-uniformity Correction	Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment	0~100, optional

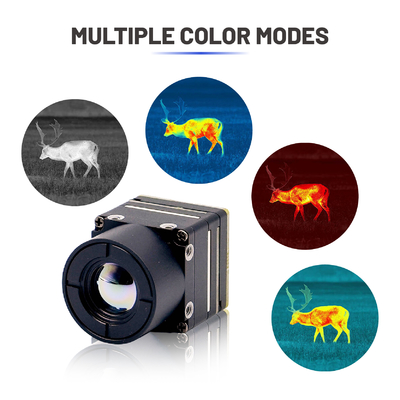

Polarity/Palette	White-hot/Black-hot/Various palettes supported
Digital zoom	1.0~8.0×continuous zoom (step size: 0.1)
Image Mirroring	Vertical/Horizontal/Diagonal
Electricity Parameters
Analog Video	PAL/NTSC
Digital Video	DVP/BT656/ USB2.0/MIPI
Communication Interface	UART/I2C/USB2.0
Power Supply Input	5V
Typical power consumption of USB output @25℃	＜0.42W
Physical Characteristics
Weight (without lens)	<7g
Dimensions (without lens)	21×21×10.3 mm
Environment Adaptability
Operating Temperature	-40℃~+80℃
Storage Temperature	-50℃~+85℃
Humidity	5%–95%, non-condensing
Vibration	6.06g, random vibration, all axes
Impact	80g, 4ms, final peak sawtooth wave, three axes and six directions

Lens Selection

Lens size	FOV	Detection range	F Number
9.1mm	28.9°×21.7°	1.1km	1.0
15mm	17.5°×13.1°	1.7km	1.0
25mm	10.5°×7.9°	2.8km	1.0
35mm	7.5°×5.7°	3.9km	1.0
